Sonly Servo Motor Series

U2400TS 1800x1620MM SERVO MOTOR MACHINE注塑機U2400TS

1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective. 2.High repeatability With mo…索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。

Worldwide ShippingDelivery to any country

Shipping QuotationRequest a complete invoice

24/7 Technical SupportBefore and after sales

Factory WarrantyDirect manufacturer support

Chat on WhatsApp Request Quotation

A sales engineer will respond as soon as possible.销售工程师将尽快回复您。

Search Tags

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.

SPECIFICATIONS 规格		U2400TS
INTERNATIONALLY RECOGNIZED MODEL 国际认证型号		19593
INJECTION UNIT 注射单位		A	B	C	D
INJECTION UNIT 注射单位
SCREW DIAMETER 螺杆直径	mm	130	140	150	160
SCREW L/D RATIO 螺杆长径比	L/D	23.7	22	20.5	19.3
SHOT VOLUME 射出容量	cm³	9949.4	11539	13246.3	15071.3
INJECTION PRESSURE 注射压力	Mpa	196.9	169.8	147.9	130
SCREW SPEED 螺杆速度	rpm	60
SHOT WEIGHT 射出重量	g	9054	10500	12054	13715
SHOT WEIGHT 射出重量	oz	319.371	370.377	425.193	483.783
CLAMPING UNIT 夹模单位
CLAMPING FORCE 夹模力	Kn	24000
TOGGLE STROKE 千斤顶行程	mm	1910

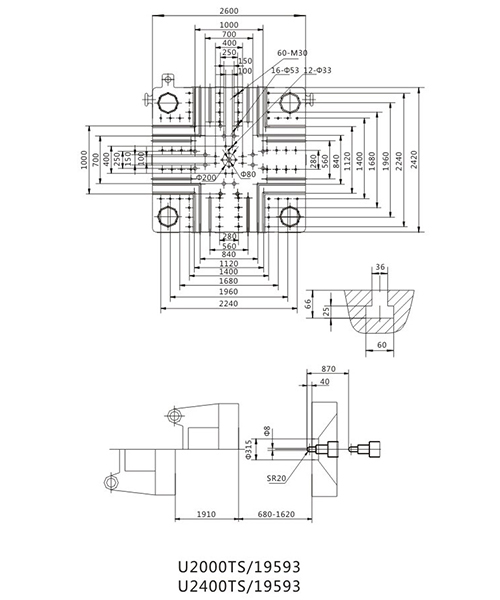

SPACE BETWEEN TIE BARS 连杆间距	mm	1800*1620
MAX.MOULD HEIGHT 最大模具高度	mm	1700
MIN.MOULD HEIGHT 最小模具高度	mm	700
EJECTOR STROKE 顶针行程	mm	500
EJECTOR FORCE 顶针力	Kn	490
EJECTOR NUMBER 顶针数量		28+1
OTHERS 其他
DIE HOLE DIAMETER 模具孔直径	mm	315
SYSTEM PRESSURE 系统压力	Mpa	16
MOTOR POWER 电机功率	Kw	45+55+55
HEATING POWER 加热功率	Kw	140
OIL TANK CUBAGE 油箱容量	L	3000
MACHINE WEIGHT 机器重量	Ton	26+130
BOUNDARY DIMENSION 外形尺寸	m	83.14.1 133.93.5
SERVO DRIVER CAPACITY 伺服驱动器容量	Kw	45*4
