U1850TS 1655x1430MM SERVO MOTOR MACHINE 注塑機U1850TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价|
SPECIFICATIONS |
U1680TS |
||||
|
INTERNATIONALLY RECOGNIZED MODEL |
14366 |
||||
|
INJECTION UNIT |
A |
B |
C |
D |
|
|
INJECTION UNIT |
|||||
|
SCREW DIAMETER |
mm |
120 |
130 |
140 |
150 |
|
SCREW L/D RATIO |
L/D |
23.8 |
22 |
20.4 |
19.1 |
|
SHOT VOLUME |
cm3 |
7464 |
8760 |
10159 |
11662 |
|
INJECTION PRESSURE |
Mpa |
192.5 |
164 |
141.4 |
123.2 |
|
SCREW SPEED |
rpm |
90 |
|||
|
SHOT WEIGHT |
g |
6792 |
7972 |
9245 |
10613 |
|
SHOT WEIGHT |
oz |
239.581 |
281.204 |
326.108 |
374.363 |
|
CLAMPING UNIT |
|||||
|
CLAMPING FORCE |
Kn |
16800 |
|||
|
TOGGLE STROKE |
mm |
1600 |
|||
|

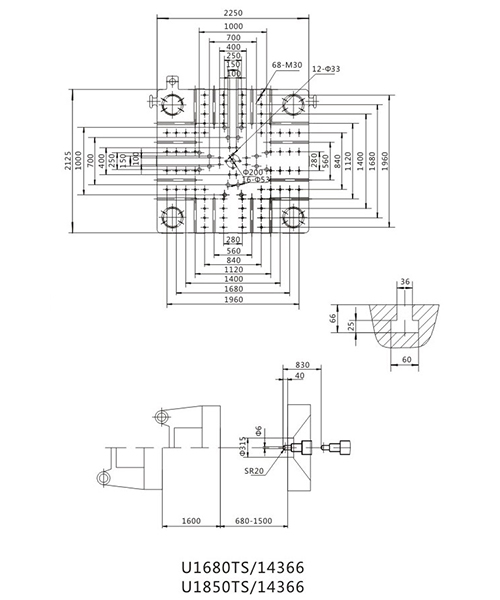

SPACE BETWEEN TIE BARS |
mm |
1555*1430 |
|||
|
MAX.MOULD HEIGHT |
mm |
1500 |
|||
|
MIN.MOULD HEIGHT |
mm |
700 |
|||
|
EJECTOR FORCE |
Kn |
520 |
|||
|
EJECTOR STROKE |
mm |
400 |
|||
|
OTHERS |
|||||
|
PUMP MOTOR POWER |
Kw |
45+45+55 |
|||
|
HEATING POWER |
Kw |
104.2 |
|||
|
DIMENSIONS(L*W*H) |
m |
14.5*3.2*4.5 |
|||
|
NET WEIGHT |
T |
100 |
|||
|
OIL TANK CAPACITY |
L |
3200 |
|||
|
