U1680TS 1555x1430MM SERVO MOTOR MACHINE注塑機U1680TS

1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective. 2.High repeatability With mo…索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。

Worldwide ShippingDelivery to any country

Shipping QuotationRequest a complete invoice

24/7 Technical SupportBefore and after sales

Factory WarrantyDirect manufacturer support

Chat on WhatsApp Request Quotation

A sales engineer will respond as soon as possible.销售工程师将尽快回复您。

Search Tags

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.

SPECIFICATIONS 规格		U1680TS
INTERNATIONALLY RECOGNIZED MODEL 国际公认的型号		14366
INJECTION UNIT 注塑单元		A	B	C	D
INJECTION UNIT 注塑单元
SCREW DIAMETER 螺杆直径	mm	120	130	140	150
SCREW L/D RATIO 螺杆长径比	L/D	23.8	22	20.4	19.1
SHOT VOLUME 注射体积	cm³	7464	8760	10159	11662
INJECTION PRESSURE 注射压力	Mpa	192.5	164	141.4	123.2
SCREW SPEED 螺杆速度	rpm	90
SHOT WEIGHT 注射重量	g	6792	7972	9245	10613
SHOT WEIGHT 注射重量	oz	239.581	281.204	326.108	374.363
CLAMPING UNIT 夹紧单元
CLAMPING FORCE 夹紧力	Kn	16800
TOGGLE STROKE 模板行程	mm	1600

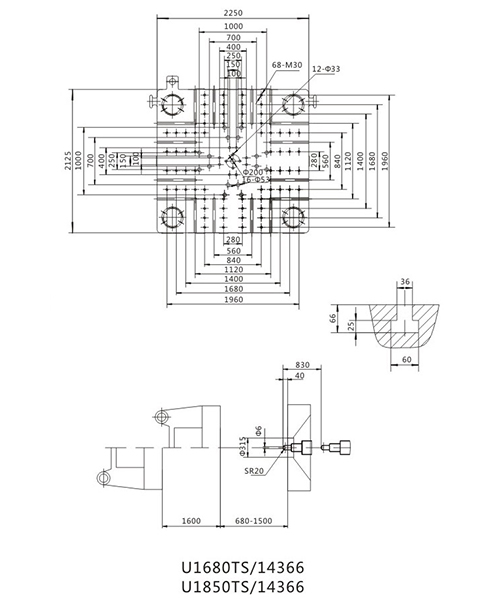

SPACE BETWEEN TIE BARS 拉杆间距	mm	1555*1430
MAX. MOULD HEIGHT 最大模具高度	mm	1500
MIN. MOULD HEIGHT 最小模具高度	mm	650
EJECTOR STROKE 顶针行程	mm	460
EJECTOR FORCE 顶针力	Kn	390
GENERAL SPECIFICATION 一般规格
PUMP MOTOR POWER 泵马达功率	Kw	55+55+45
HEATING POWER 加热功率	Kw	102.4
MACHINE DIMENSIONS 机器尺寸	m	15.33.33.3
OILTANK CAPACITY 油箱容量	L	3000
MACHINE WEIGHT 机器重量	T	120
