U800TS 1050*945MM SERVO MOTOR MACHINE 注塑機U780TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价|
SPECIFICATIONS |

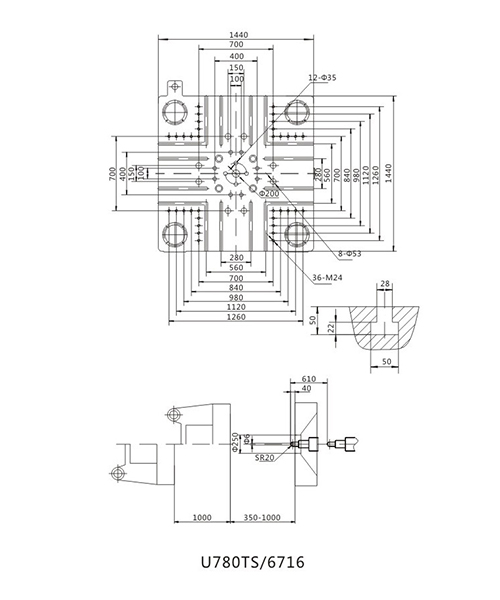

U780TS |
||||
|
INTERNATIONALLY RECOGNIZED MODEL |
6716 |
||||
|
INJECTION UNIT |
A |
B |
C C |
D |
|
|
INJECTION UNIT |
|||||
|
SCREW DIAMETER |
mm |
90 |
100 |
110 110 |
120 |
|
SCREW L/D RATIO |
L/D |
24.4 |
22 |
20 20 |
18.3 |
|
SHOT VOLUME |
cm3 |
2956 |
3650 |
4416 4416 |
5256 |
|
INJECTION PRESSURE |
Mpa |
227.2 |
184 |
152.1 152.1 |
127.8 |
|
SCREW SPEED |
rpm |
91 |
|||
|
SHOT WEIGHT |
g |
2689 |
3321 |
4018 4018 |
4782 |
|
SHOT WEIGHT |
oz |
94.887 |
117.18 |
141.766 141.766 |
168.715 |
|
CLAMPING UNIT |
|||||
|
CLAMPING FORCE |
Kn |
7800 |
|||
|
TOGGLE STROKE |
mm |
1000 |
|||
|
SPACE BETWEEN TIE BARS |
mm |
985*985 |
|||
|
MAX.MOULD HEIGHT |
mm |
1000 |
|||
|
MIN.MOULD HEIGHT |
mm |
500 |
|||
|
PLATEN SIZE |
mm |
1000*1000 |
|||
|
MOLD OPENING STROKE |
mm |
1000 |
|||
|
EJECTOR FORCE |
Kn |
87.5 |
|||
|
EJECTOR STROKE |
mm |
450 |
|||
|
GENERAL CHARACTERISTICS |
|||||
|
POWER CONSUMPTION |
Kw |
117 |
|||
|
DIMENSIONS |
m |
7.8*2.9*3.2 |
|||
|
WEIGHT |
kg |
23000 |
|||
|
OPTIONAL |
|||||
|
YARN STORAGE |
mm |
2400 |
|||
|
CHILLER |
Kw |
150 |
|||
|
