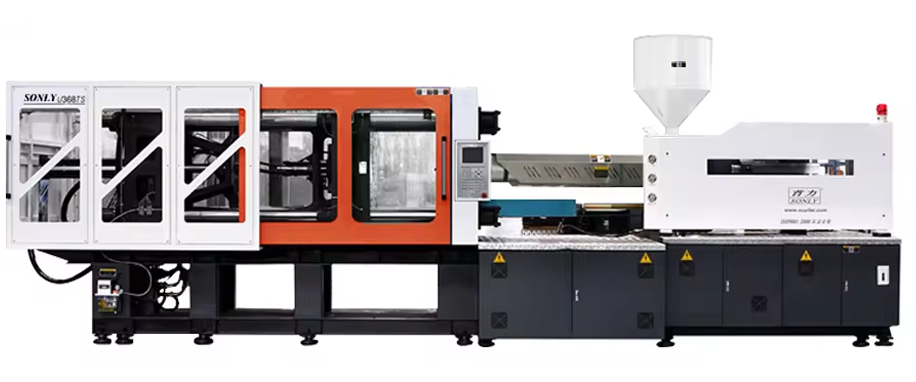

U590TS 845x830MM SERVO MOTOR MACHINE 注塑機U590TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价|
SPECIFICATIONS 规格 |
U590TS |
|||
|
INTERNATIONALLY RECOGNIZED MODEL 国际公认型号 |
4260 |
|||
|
INJECTION UNIT 注射单元 |
A |
B |
C |
|
|
INJECTION UNIT 注射单元 |
||||
|
SCREW DIAMETER 螺杆直径 |
mm |
85 |
90 |
95 |
|
SCREW L/D RATIO 螺杆L/D比 |
L/D |
23.3 |
22 |
20.8 |
|
SHOT VOLUME 注射体积 |
cm3 |
2388 |
2678 |
2983 |
|
INJECTION PRESSURE 注射压力 |
Mpa |
178.3 |
159 |
142.7 |
|
SCREW SPEED 螺杆转速 |
rpm |
126 |
||
|
SHOT WEIGHT 注射重量 |
g |
2174 |
2437 |
2715 |
|
SHOT WEIGHT 注射重量 |
oz |
76.686 |
85.963 |
95.769 |
|
CLAMPING UNIT 合模单元 |
||||
|
CLAMPING FORCE 合模力 |
Kn |
5900 |
||
|
TOGGLE STROKE 伸缩行程 |
mm |
850 |
||
|
SPACE BETWEEN TIE BARS 捆绑杆之间的间距 |
mm |
845*830 |
||
|
MAX.MOULD HEIGHT 最大模具高度 |
mm |
850 |
||
|
MIN.MOULD HEIGHT 最小模具高度 |
mm |
300 |
||
|
EJECTOR STROKE 吹出行程 |
mm |
225 |
||
|
EJECTOR FORCE 吹出力 |
Kn |
152 |
||
|
EJECTOR NUMBER 吹出器数量 |
12+1 |
|||
|
OTHERS 其他 |
||||
|
DIE HOLE DIAMETER 模孔直径 |
mm |
320 |
||
|
MAX.INJECTION WEIGHT 最大注射重量 |
kg |
1000 |
||
|
MACHINE WEIGHT 机器重量 |
kg |
24500 |
||
|
MACHINE DIMENSIONS 机器尺寸 |
mm |
5800x3800x2900 |
||
|
