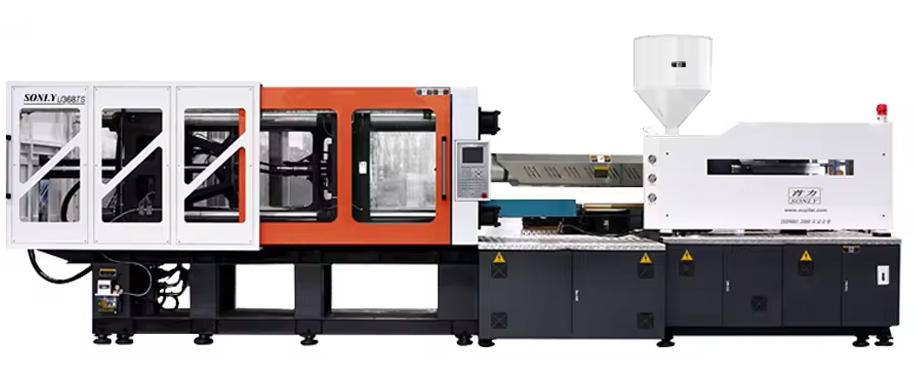

U530TS 805x715MM SERVO MOTOR MACHINE 注塑機U530TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价| SPECIFICATIONS (规格) | U530TS | |||
|---|---|---|---|---|
| INTERNATIONALLY RECOGNIZED MODEL (国际认可型号) | 3300 | |||
| INJECTION UNIT (注射单元) | A | B | C | |
| Screw Diameter (螺杆直径) | mm | 80 | 85 | 90 |
| Screw L/D Ratio (螺杆长径比) | L/D | 23.4 | 22 | 20.8 |
| Shot Volume (射出量) | cm³ | 1964.7 | 2218 | 2486.6 |
| Injection Pressure (注射压力) | MPa | 168 | 148.8 | 132.7 |
| Screw Speed (螺杆速度) | rpm | 152 | ||
| Shot Weight (射出重量) | g | 1788 | 2018 | 2263 |
| Shot Weight (射出重量) | oz | 63.07 | 71.183 | 79.825 |
| Clamping Unit (夹紧单元) | ||||
| Clamping Force (夹紧力) | kN | 5300 | ||
| Toggle Stroke (切换行程) | mm | 775 | ||
| Space Between Tie Bars (捆绑条之间的间隙) | mm | 820x800 | ||
| Max. Mould Height (最大模具高度) | mm | 800 | ||
| Min. Mould Height (最小模具高度) | mm | 290 | ||
| Ejector Stroke (顶出行程) | mm | 225 | ||
| Ejector Force (顶出力) | kN | 152 | ||
| Ejector Number (顶出器数量) | 12+1 | |||
| Others (其他) | ||||
| Die Hole Diameter (模孔直径) | mm | 200 | ||
| System Pressure (系统压力) | MPa | 16 | ||
| Motor Power (电机功率) | kW | 45 | ||
| Heating Power (加热功率) | kW | 38.3 | ||
| Oil Tank Cubage (油箱容量) | L | 900 | ||
| Machine Weight (机器重量) | ton | 20 | ||
| Boundary Dimension (边界尺寸) | m | 7.8x2.3x2.7 | ||
| Servo Driver Capacity (伺服驱动器容量) | kW | 22+45 | ||
