U508TS 805x715MM SERVO MOTOR MACHINE 注塑機U508TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价|
SPECIFICATIONS (规格) |
U508TS |
|||
|
INTERNATIONALLY RECOGNIZED MODEL (国际认可型号) |
3300 |
|||
|
INJECTION UNIT (注射单元) |
A |
B |
C |
|
|
INJECTION UNIT (注射单元) |
||||
|
SCREW DIAMETER (螺杆直径) |
mm |
80 |
85 |
90 |
|
SCREW L/D RATIO (螺杆长径比) |
L/D |
23.4 |
22 |
20.8 |
|
SHOT VOLUME (射出量) |
cm3 |
1964.7 |
2218 |
2486.6 |
|
INJECTION PRESSURE (注射压力) |
Mpa |
168 |
148.8 |
132.7 |
|
SCREW SPEED (螺杆速度) |
rpm |
152 |
||
|
SHOT WEIGHT (射出重量) |
g |
1788 |
2018 |
2263 |
|
SHOT WEIGHT (射出重量) |
oz |
63.07 |
71.183 |
79.825 |
|
CLAMPING UNIT (夹紧单元) |
||||
|
CLAMPING FORCE (夹紧力) |
Kn |
5080 |
||
|
TOGGLE STROKE (千斤顶行程) |
mm |
775 |
||
|

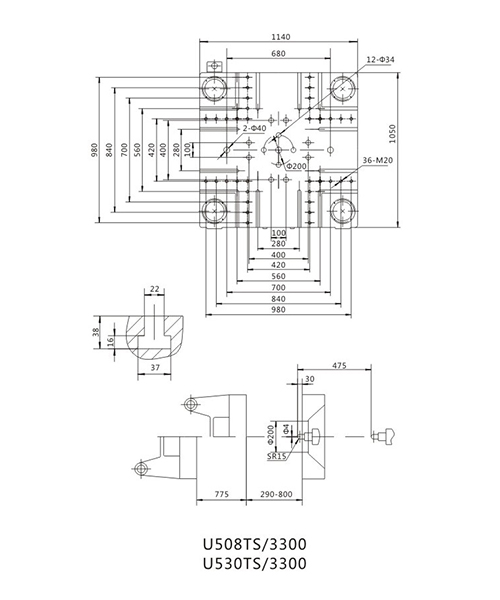

SPACE BETWEEN TIE BARS (支撑杆间距) |
mm |
805*715 |
||
|
MAX.MOULD HEIGHT (最大模具高度) |
mm |
800 |
||
|
MIN.MOULD HEIGHT (最小模具高度) |
mm |
290 |
||
|
EJECTOR STROKE (顶针行程) |
mm |
225 |
||
|
EJECTOR FORCE (顶针力) |
Kn |
152 |
||
|
EJECTOR NUMBER (顶针数量) |
12+1 |
|||
|
OTHERS (其他) |
||||
|
MACHINE DIMENSIONS (机器尺寸) |
mm |
4800*2200*4300 |
||
|
MACHINE WEIGHT (机器重量) |
Kg |
25000 |
||
|
POWER REQUIREMENT (电力要求) |
Kw |
100 |
||
|
POWER SUPPLY (电源供应) |
V/Hz |
380/50 |
||
|
