Sonly Servo Motor Series

U178TS 485x465MM SERVO MOTOR MACHINE注塑機U178TS

1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective. 2.High repeatability With mo…索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。

Worldwide ShippingDelivery to any country

Shipping QuotationRequest a complete invoice

24/7 Technical SupportBefore and after sales

Factory WarrantyDirect manufacturer support

Chat on WhatsApp Request Quotation

A sales engineer will respond as soon as possible.销售工程师将尽快回复您。

Search Tags

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.

SPECIFICATIONS 规格		U178TS U178TS
INTERNATIONALLY RECOGNIZED MODEL 国际公认型号		900 900
INJECTION UNIT 注射单元		A A	B B	C C
INJECTION UNIT 注射单元
SCREW DIAMETER 螺杆直径	mm 毫米	45 45	48 48	55 55
SCREW L/D RATIO 螺杆L/D比	L/D	23.5 23.5	22 22	19.2 19.2
SHOT VOLUME 射击体积	cm3 立方厘米	397.3 397.3	452 452	593.4 593.4
INJECTION PRESSURE 注射压力	Mpa	227.6 227.6	200 200	152.3 152.3
SCREW SPEED 螺杆转速	rpm	196 196
SHOT WEIGHT 射击重量	g 克	362 362	411 411	540 540
SHOT WEIGHT 射击重量	oz 盎司	12.769 12.769	14.498 14.498	19.048 19.048
CLAMPING UNIT 夹紧单元
CLAMPING FORCE 夹紧力	Kn	1780 1780
TOGGLE STROKE 行程	mm 毫米	450 450

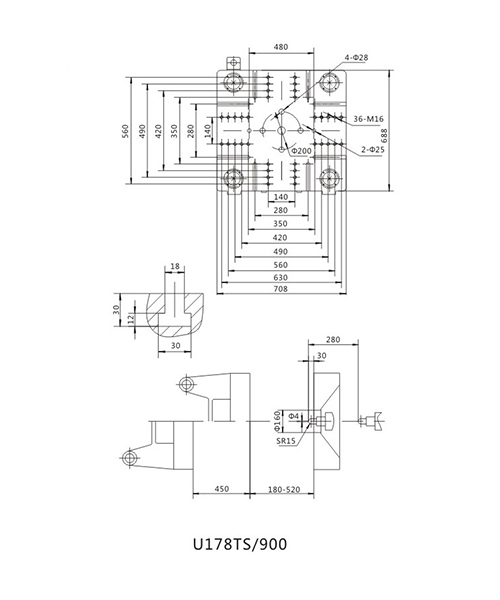

SPACE BETWEEN TIE BARS 拉杆间距	mm 毫米	485465 485465
MAX.MOULD HEIGHT 最大模具高度	mm 毫米	520 520
MIN.MOULD HEIGHT 最小模具高度	mm 毫米	180 180
EJECTOR STROKE 推杆行程	mm 毫米	130 130
EJECTOR FORCE 推杆力	Kn	70 70
EJECTOR NUMBER 推杆数量		4+1 4+1
OTHERS 其他
DIE HOLE DIAMETER 模孔直径	mm 毫米	160 160
SYSTEM PRESSURE 系统压力	Mpa	16 16
POWER CAPACITY 功率	Kw	37 37
MACHINE DIMENSION 机器尺寸	mm 毫米	435018502250 435018502250
MACHINE WEIGHT 机器重量	Kg 千克	7600 7600
