Sonly Servo Motor Series

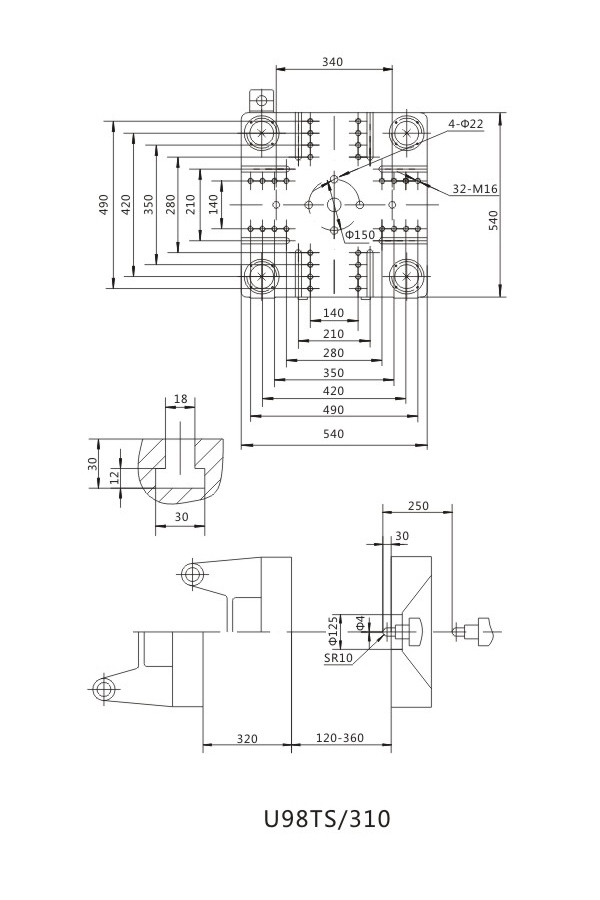

U98TS 365x360MM SERVO MOTOR MACHINE注塑機U98TS

1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective. 2.High repeatability With mo…1.型號齊全索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。

Worldwide ShippingDelivery to any country

Shipping QuotationRequest a complete invoice

24/7 Technical SupportBefore and after sales

Factory WarrantyDirect manufacturer support

Chat on WhatsApp Request Quotation

A sales engineer will respond as soon as possible.销售工程师将尽快回复您。

Search Tags

1.Complete models
Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules to meet various individual needs and cost-effective.

2.High repeatability
With more than 20 years of practical experience in research and development of plastic machines, using servo system, which is stable and fast, high efficiency and energy saving, low noise, high repeatability.

SPECIFICATIONS 规格		U98TS
INTERNATIONALLY RECOGNIZED MODEL 国际认可型号		310
INJECTION UNIT 注射单元		A	B	C
INJECTION UNIT 注射单元
SCREW DIAMETER 螺杆直径	mm	32	35	38
SCREW L/D RATIO 螺杆长径比	L/D	24.1	22	20.3
SHOT VOLUME 射出量	cm3	133.7	160	182.4
INJECTION PRESSURE 注射压力	Mpa	232.1	194	164.6
SCREW SPEED 螺杆速度	rpm	210
SHOT WEIGHT 射出重量	g	122	146	172
SHOT WEIGHT 射出重量	oz	4.303	5.15	6.067
CLAMPING UNIT 夹紧单元
CLAMPING FORCE 夹紧力	Kn	980
TOGGLE STROKE 液压行程	mm	320
SPACE BETWEEN TIE BARS 支撑杆之间的间距	mm	510x510
MOLD HEIGHT 模具高度	mm	330
OTHERS 其他
MACHINE DIMENSIONS 机器尺寸	mm	3700x2100x2400
MACHINE WEIGHT 机器重量	kg	6800
POWER CONSUMPTION 功率消耗	KW	45

SPECIFICATIONS 规格		U98TS
INTERNATIONALLY RECOGNIZED MODEL 国际认可型号		310
INJECTION UNIT 注射单元		A	B	C
INJECTION UNIT 注射单元
SCREW DIAMETER 螺杆直径	mm	32	35	38
SCREW L/D RATIO 螺杆长径比	L/D	24.1	22	20.3
SHOT VOLUME 射出量	cm3	133.7	160	182.4
INJECTION PRESSURE 注射压力	Mpa	232.1	194	164.6
SCREW SPEED 螺杆速度	rpm	210
SHOT WEIGHT 射出重量	g	122	146	172
SHOT WEIGHT 射出重量	oz	4.303	5.15	6.067
CLAMPING UNIT 夹紧单元
CLAMPING FORCE 夹紧力	Kn	980
TOGGLE STROKE 液压行程	mm	320
SPACE BETWEEN TIE BARS 支撑杆之间的间距	mm	510x510
MOLD HEIGHT 模具高度	mm	330
OTHERS 其他
MACHINE DIMENSIONS 机器尺寸	mm	3700x2100x2400
MACHINE WEIGHT 机器重量	kg	6800
POWER CONSUMPTION 功率消耗	KW	45
