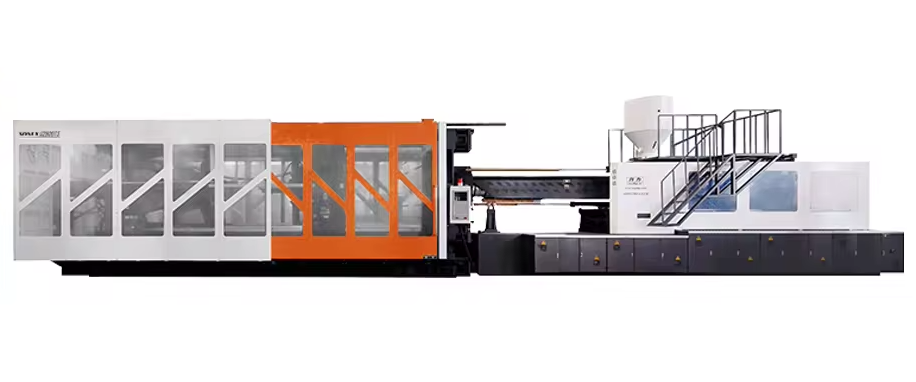

U610TS Between tie bar: 885x810mm Shot weight: 2437g U610TS Between tie bar: 885x810mm Shot weight: 2437g
.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … .Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules …
Get a Quote 索取报价| Specifications | U610TS 4260 |
|||
|---|---|---|---|---|
| Injection Unit | A | B | C | |
| 螺杆直径 Screw Diameter |
mm | 85 | 90 | 95 |
| 螺杆长径比 Screw Ratio |
L/D | 23.4 | 22 | 20.8 |
| 理论注射容积 Theoretical Shot Volume |
cm³ | 2388.0 | 2678.0 | 2938.0 |
| 注射压力 Injection Pressure |
MPa | 178.3 | 159.0 | 142.7 |
| 理论注射量(PS) Theoretical Shot Weight |
g | 2174 | 2437 | 2715 |
| 理论注射量(PS) Theoretical Shot Weight |
oz | 76.686 | 85.963 | 95.769 |
| 螺杆转速 Screw Speed |
rpm | 126 | ||
| Clamping Unit | ||||
| 锁模力 Clamping Force |
KN | 6100 | ||
| 拉杆内距 Space Between Tie Bars |
mm | 850×810 | ||
| 最大模厚 Max Mould Height |
mm | 850 | ||
| 最小模厚 Min Mould Height |
mm | 290 | ||
| 顶出行程 Ejector Stroke |
mm | 225 | ||
| 顶出力 Ejector Force |
KN | 152 | ||
| 顶出杆数量 Ejector Number |
12+1 | |||
| 模具定位圈 Die Hole Diameter |
mm | 200 | ||
| Others | ||||
| 系统压力 System Pressure |
MPa | 16 | ||
| 油泵电机功率 Ordinary Motor Power |
KW | 45 | ||
| 加热功率 Heater Power |
KW | 42 | ||
| 油箱容积 | L | 900 | ||
| 机器重量 Weight |
Ton | 25 | ||
| 外形尺寸 (L×W×H) | m | 8.9×2.3×3.0 | ||
| 伺服驱动器功率 | KW | 30+45 | ||
