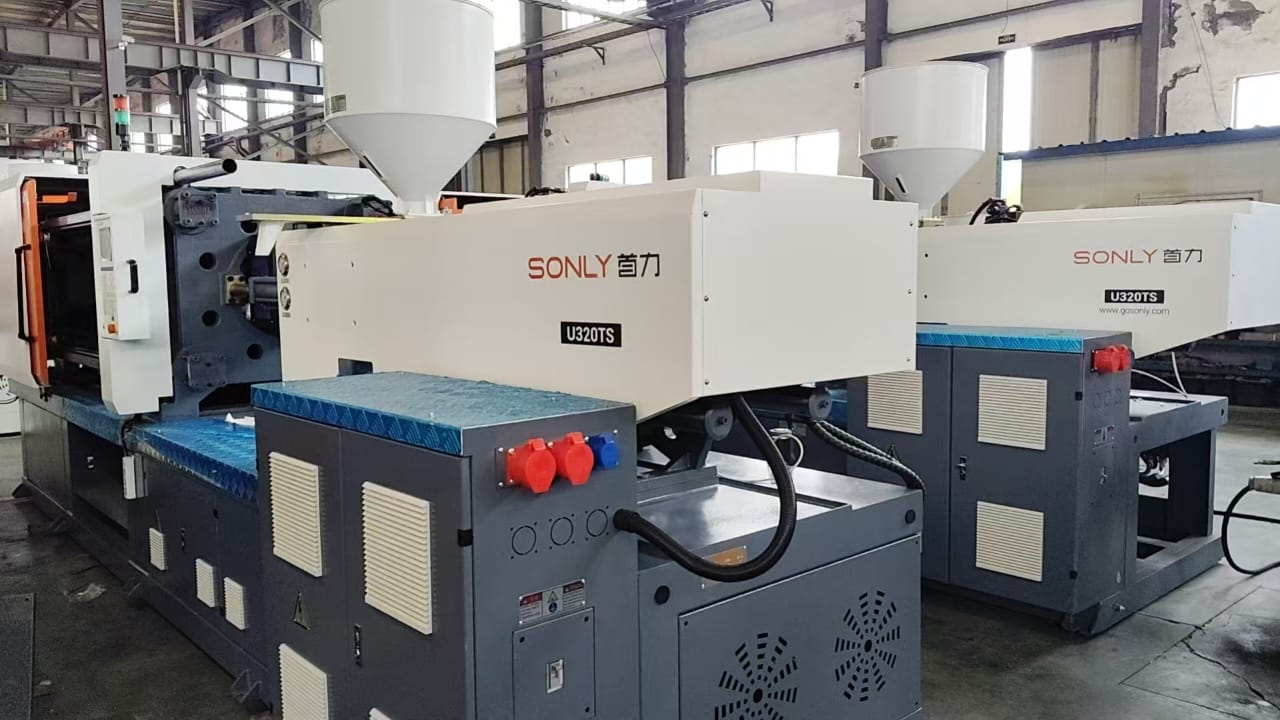

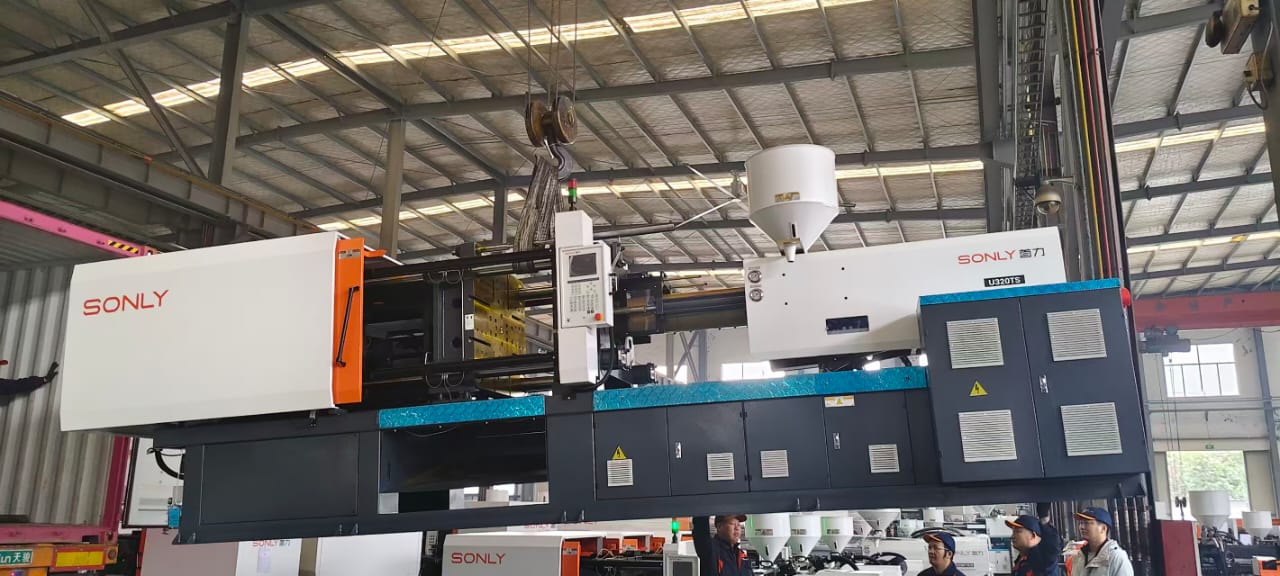

U320TS 705*585MM SERVO MOTOR MACHINE U320TS 705×585MM 伺服电机机器
U320TS 705*585MM SERVO MOTOR MACHINE U320TS 705×585MM 伺服电机机器
Get a Quote 索取报价| U320TS | |||||
|---|---|---|---|---|---|
| 规格 Specifications | U320TS | ||||
| 型号/公称射胶能力 Internationally Recognized Model | 1906 | ||||
| 注射 Injection Unit | A | B | C | ||
| 注射装置 | |||||
| 螺杆直径 | mm | 60 | 65 | 70 | |
| 螺杆长径比 Screw ratio | L/D | 22.8 | 21 | 19.5 | |
| 理论注射容量(PS) Theoretical Shot volume | cm³ | 1003 | 1178 | 1366 | |
| 注射压力 Injection pressure | MPa | 190.0 | 162.0 | 139.6 | |
| 理论注射重量(PS) Theoretical Shot weight | g | 913 | 1072 | 1243 | |
| 理论注射重量(PS) Theoretical Shot weight | oz | 21.0 | 37.8 | 43.8 | |
| 注射速率(PS) Injection Rate | g/s | 319.0 | 374.0 | 434.0 | |
| 螺杆转速 Screw Speed | rpm | 220 | |||
| 锁模装置 | |||||
| 锁模力 Clamping force | KN | 3200 | |||
| 移模行程 Toggle stroke | mm | 660 | |||
| 拉杆内间距 Space between tie bars | mm | 705X585 | |||
| 最大模具厚度 Max mould height | mm | 660 | |||
| 最小模具厚度 Min mould height | mm | 210 | |||
| 顶出行程 Ejector stroke | mm | 220 | |||
| 顶出力 Ejector force | KN | 90 | |||
| 顶出杆数 Ejector Number | 12+1 | ||||
| 模具孔直径 Die Hole Diameter | mm | 160 | |||
| 其他 | |||||
| 系统压力 System Pressure | MPa | 16 | |||
| 加热功率 Heater Power | KW | 24.7 | |||
| 油箱容积 | L | 400 | |||
| 机器重量（约） | Ton | 9.8 | |||
| 外形尺寸 (LxWxH) | m | 7.1x1.85x2.46 | |||
| 伺服驱动器功率 | KW | 45 | |||
| U320TS | |||||
|---|---|---|---|---|---|
