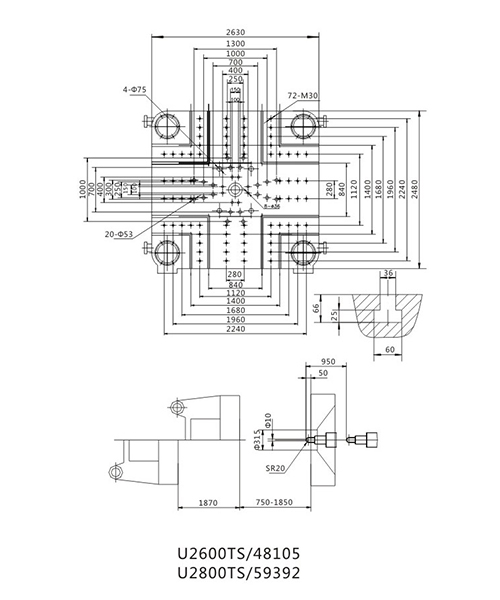

U2600TS 1860x1710MM SERVO MOTOR MACHINE 注塑機U2600TS
1.Complete models Sonly has invested amount of money in the continuous design and development of 28 models of U-TS series of 98-3400 tons, and the one-time development of casting wood molds to form a series of modules … 索力投入大量資金持續設計開發U-TS系列98-3400噸28個型號，一次性開發鑄造木模，形成系列模組，滿足各種個性化需求和成本- 有效的。 2.重複精度高 具備20多年研發塑機的實務經驗，採用伺服系統，穩定快速、高效節能、噪音低、重複精度高。
Get a Quote 索取报价|
SPECIFICATIONS 规格 |
U2600TS |
|
|
INTERNATIONALLY RECOGNIZED MODEL 国际公认型号 |
48105 |
|
|
INJECTION UNIT 注射单位 |
A |
|
|
SCREW DIAMETER 螺杆直径 |
mm |
170 |
|
SCREW L/D RATIO 螺杆长径比 |
L/D |
23.9 |
|
SHOT VOLUME 射出量 |
cm3 |
26102 |
|
INJECTION PRESSURE 注射压力 |
Mpa |
184.3 |
|
SCREW SPEED 螺杆转速 |
rpm |
70 |
|
SHOT WEIGHT (g) 射出重量 (克) |
g |
23753 |
|
SHOT WEIGHT (oz) 射出重量 (盎司) |
oz |
837.863 |
|
CLAMPING UNIT 闭模单位 |
||
|
CLAMPING FORCE Clamp Force (Kn) 夹紧力 (千牛) |
Kn |
26000 |
|
TOGGLE STROKE 行程 |
mm |
1870 |
|
SPACE BETWEEN TIE BARS 支撑杆间距 |
mm |
1860*1710 |
|
MAX.MOULD HEIGHT 最大模具高度 |
mm |
1850 |
|
MIN.MOULD HEIGHT 最小模具高度 |
mm |
750 |
|
EJECTOR STROKE 推杆行程 |
mm |
500 |
|
EJECTOR FORCE 推杆力 |
Kn |
565 |
|
EJECTOR NUMBER 推杆数量 |
32+1 |
|
|
OTHERS 其他 |
||
|
DIE HOLE DIAMETER 模孔直径 |
mm |
315 |
|
SYSTEM PRESSURE 系统压力 |
Mpa |
16 |
|
MOTOR POWER 电机功率 |
Kw |
220 |
|
HEATING POWER 加热功率 |
Kw |
180 |
|
OIL TANK CUBAGE 油箱容量 |
L |
3800 |
|
MACHINE WEIGHT 机器重量 |
Ton |
43+133 |
|
BOUNDARY DIMENSION 外形尺寸 |
m |
9.5*3.3*4.2 13*3.4*3.55 |
|
SERVO DRIVER CAPACITY 伺服驱动器容量 |
Kw |
55*4 |
|
